Carbide Rod
Email with us today to get the best deals and fastest deliveries on related carbide tools!
Category:
24-hour hot line:
E-mail:
Product Details

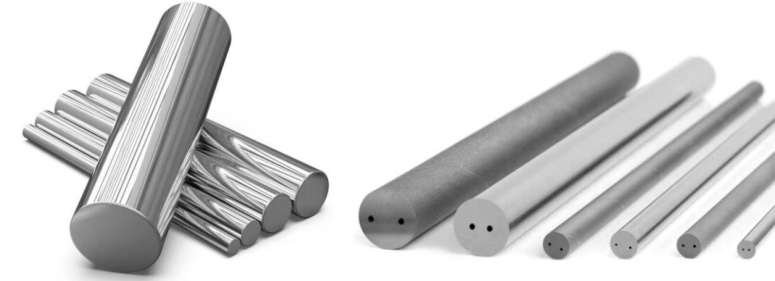

Cemented carbide rods are widely used for creating premium solid carbide tools, such as end mills, drills, reamers, milling cutters, stamping, and measuring tools in different industries. We supply both unground and ground carbide rods. A comprehensive standard selection of cemented carbide rods in various dimensions is available, and we also offer customization services according to your requirements.We use top-quality materials to guarantee the quality and performance of our carbide rods. With rigorous quality inspections, we can ensure consistent quality within each batch.
Carbide Rod Types：
Solid Carbide Rods in Metrics
Solid Carbide Rods in Inches
Drill Blanks (Chamfered)
End Mill Blanks (Chamfered)
Carbide Rods with A Straight Central Coolant Hole
Carbide Rods with Two Straight Coolant Holes
|
Tolerance Grade For Ground Rods |
|||
|
Diameter (mm) |
h5 |
h6 |
h7 |
|
0-3.0 |
0.004 |
0.006 |
0.01 |
|
3.001-6.0 |
0.005 |
0.008 |
0.012 |
|
6.001-10.0 |
0.006 |
0.009 |
0.015 |
|
10.001-17 |
0.008 |
0.011 |
0.018 |
|
18.001-30.0 |
0.009 |
0.013 |
0.021 |
|
30.001-50.0 |
0.011 |
0.016 |
0.025 |
|
Diameter ≤50mm, cut length can be supplied at customers’ request. |
|||
Size sheet:
CEMENTED CARBIDE ROD IN METRI SIZE(Unpolished surface)
|
Diameter |
Tolerance in unground |
Total length |
Tolerance in length |
|
D 2 mm |
+0.15mm, +0.3mm |
330mm |
+0, +5mm |
|
D 3 mm |
+0.30mm, +0.5mm |
330mm |
+0, +5mm |
|
D 4 mm |
+0.30mm, +0.5mm |
330mm |
+0, +5mm |
|
D 5 mm |
+0.30mm, +0.5mm |
330mm |
+0, +5mm |
|
D 6 mm |
+0.30mm, +0.6mm |
330mm |
+0, +5mm |
|
D 7 mm |
+0.30mm, +0.6mm |
330mm |
+0, +5mm |
|
D 8 mm |
+0.30mm, +0.6mm |
330mm |
+0, +5mm |
|
D 9 mm |
+0.30mm, +0.6mm |
330mm |
+0, +5mm |
|
D 10 mm |
+0.30mm, +0.6mm |
330mm |
+0, +5mm |
|
D 11 mm |
+0.30mm, +0.6mm |
330mm |
+0, +5mm |
|
D 12 mm |
+0.30mm, +0.7mm |
330mm |
+0, +5mm |
|
D 13 mm |
+0.30mm, +0.7mm |
330mm |
+0, +5mm |
|
D 14 mm |
+0.30mm, +0.7mm |
330mm |
+0, +5mm |
|
D 15 mm |
+0.30mm, +0.7mm |
330mm |
+0, +5mm |
|
D 16 mm |
+0.30mm, +0.8mm |
330mm |
+0, +5mm |
|
D 17 mm |
+0.30mm, +0.8mm |
330mm |
+0, +5mm |
|
D 18 mm |
+0.30mm, +0.8mm |
330mm |
+0, +5mm |
|
D 19 mm |
+0.30mm, +0.8mm |
330mm |
+0, +5mm |
|
D 20 mm |
+0.30mm, +0.8mm |
330mm |
+0, +5mm |
|
D 21 mm |
+0.30mm, +0.8mm |
330mm |
+0, +5mm |
|
D 22 mm |
+0.30mm, +0.8mm |
330mm |
+0, +5mm |
|
D 23 mm |
+0.30mm, +0.8mm |
330mm |
+0, +5mm |
|
D 24 mm |
+0.30mm, +0.8mm |
330mm |
+0, +5mm |
|
D 25 mm |
+0.30mm, +0.8mm |
330mm |
+0, +5mm |
|
D 26 mm |
+0.5mm, +1.0mm |
330mm |
+0, +5mm |
|
D 27 mm |
+0.5mm, +1.0mm |
330mm |
+0, +5mm |
|
D 28 mm |
+0.5mm, +1.0mm |
330mm |
+0, +5mm |
|
D 29mm |
+0.5mm, +1.0mm |
330mm |
+0, +5mm |
|
D 30mm |
+0.5mm, +1.0mm |
330mm |
+0, +5mm |
|
D 31mm- D 50mm |
+1.0mm, +2.0mm |
330mm |
+0, +5mm |
CEMENTEDCARBIDE ROD IN METRI SIZE(Polished surface)
|
Diameter |
Tolerance in ground |
Total length |
Tolerance in length |
|
D 2 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 3 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 4 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 5 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 6 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 7 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 8 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 9 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 10 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 11 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 12 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 13 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 14 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 15 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 16 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 17 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 18 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 19 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 20 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 21 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 22 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 23 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 24 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 25 mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 26mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 27mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 28mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 29mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 30mm |
h5/h6 |
330mm |
+0, +5mm |
|
D 31- D 50mm |
h5/h6 |
330mm |
+0, +5mm |
CEMENTED CARBIDE ROD IN INCH SIZE (Unpolished surface)
|
Diameter |
Tolerance in unground |
Total length |
Tolerance in length |
|
D 1/8’’ |
+0.012, +0.02’’ |
3-1/8’’ |
+1/8，+3/8’’ |
|
D 3/8’’ |
+0.012, +0.02’’ |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 5/32’’ |
+0.012, +0.02’’ |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 11/64’’ |
+0.012, +0.02’’ |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 3/16’’ |
+0.012, +0.02’’ |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 13/64’’ |
+0.012, +0.02’’ |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 7/32’’ |
+0.012, +0.02’’ |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 15/64’’ |
+0.012, +0.02’’ |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 1/4’’ |
+0.012, +0.024’’ |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 9/32’’ |
+0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 19/64’’ |
0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 5/16’’ |
0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 21/64’’ |
0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 11/32’’ |
0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 23/64’’ |
0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 3/8’’ |
0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 25/64’’ |
0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 13/32’’ |
0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 27/64’’ |
0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 7/16’’ |
0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 29/64’’ |
0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 15/32’’ |
0.012, +0.024’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 31/64’’ |
0.012, +0.028’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 1/2’’ |
0.012, +0.028’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 17/32’’ |
0.012, +0.028’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 9/16’’ |
0.012, +0.028’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 5/8’’ |
0.012, +0.032’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 11/16’’ |
0.012, +0.032’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 3/4’’ |
0.012, +0.032’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 13/16’’ |
0.012, +0.032’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 7/8’’ |
0.012, +0.032’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 15/16’’ |
0.012, +0.032’’ |
12-1/8’’ |
+1/8，+3/8’’ |
|
1’’ |
0.012, +0.032’’ |
12-1/8’’ |
+1/8，+3/8’’ |
CEMENTED CARBIDE ROD IN INCH SIZE (Polished surface)
|
Diameter |
Tolerance in ground |
Total length |
Tolerance in length |
|
D 1/8’’ |
h5/h6 |
3-1/8’’ |
+1/8，+3/8’’ |
|
D 3/8’’ |
h5/h6 |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 5/32’’ |
h5/h6 |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 11/64’’ |
h5/h6 |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 3/16’’ |
h5/h6 |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 13/64’’ |
h5/h6 |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 7/32’’ |
h5/h6 |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 15/64’’ |
h5/h6 |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 1/4’’ |
h5/h6 |
13-1/8’’ |
+1/8，+3/8’’ |
|
D 9/32’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 19/64’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 5/16’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 21/64’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 11/32’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 23/64’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 3/8’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 25/64’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 13/32’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 27/64’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 7/16’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 29/64’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 15/32’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 31/64’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 1/2’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 17/32’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 9/16’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 5/8’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 11/16’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 3/4’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 13/16’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 7/8’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
D 15/16’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
|
1’’ |
h5/h6 |
12-1/8’’ |
+1/8，+3/8’’ |
CEMENTED CARBIDE ROD WITH 1 STRAIGHT CENTRAL COOLANT HOLE (Unpolished surface)
|
Diameter |
Total length |
Hole size |
Tolerance of hole size |
a |
|
(0, +5mm) |
||||
|
D 3 mm |
330 mm |
0.3 |
+/-0.1mm |
0.1 |
|
D 4 mm |
330 mm |
0.6 |
+/-0.1mm |
0.1 |
|
D 6 mm |
330 mm |
1 |
+/-0.15mm |
0.15 |
|
D 8 mm |
330 mm |
1.3 |
+/-0.15mm |
0.15 |
|
D 10 mm |
330 mm |
2 |
+/-0.2mm |
0.2 |
|
D 12 mm |
330 mm |
2 |
+/-0.2mm |
0.3 |
|
D 14 mm |
330 mm |
2 |
+/-0.2mm |
0.37 |
|
D 16 mm |
330 mm |
2 |
+/-0.2mm |
0.4 |
|
D 18 mm |
330 mm |
3 |
+/-0.25mm |
0.5 |
|
D 20 mm |
330 mm |
3 |
+/-0.25mm |
0.5 |
|
D 22 mm |
330 mm |
3 |
+/-0.25mm |
0.5 |
|
D 24 mm |
330 mm |
4 |
+/-0.30mm |
0.5 |
|
D 26 mm |
330 mm |
4 |
+/-0.30mm |
0.5 |
|
D 28 mm |
330 mm |
4 |
+/-0.30mm |
0.5 |
|
D 30 mm |
330 mm |
5 |
+-0.35mm |
0.5 |
CEMENTED CARBIDE ROD WITH 2 STRAIGHT COOLANT HOLES (Unpolished surface)
|
Diameter * Length |
Inner hole |
Tolerance |
TK |
Tolerance |
a |
|
D4X330 mm |
d 0.8 mm |
+/-0.1mm |
1.72 mm |
+/-0.08 mm |
0.10 mm |
|
D5X330 mm |
d 0.8 mm |
+/-0.1mm |
1.92 mm |
+/-0.08 mm |
0.13 mm |
|
D6X330 mm |
d 1.0 mm |
+/-0.1mm |
2.9 mm |
+/-0.1 mm |
0.15 mm |
|
D7X330 mm |
d 1.0 mm |
+/-0.15mm |
3.4 mm |
+/-0.1 mm |
0.15 mm |
|
D8X330 mm |
d 1.0 mm |
+/-0.15mm |
3.85 mm |
+/-0.15 mm |
0.15 mm |
|
D9X330 mm |
d 1.4 mm |
+/-0.15mm |
3.85 mm |
+/-0.15 mm |
0.2 mm |
|
D10X330 mm |
d 1.4 mm |
+/-0.15mm |
4.85 mm |
+/-0.15 mm |
0.2 mm |
|
D11X330 mm |
d 1.4 mm |
+/-0.15mm |
4.85 mm |
+/-0.15 mm |
0.28 mm |
|
D12X330 mm |
d 1.75 mm |
+/-0.15mm |
5.85 mm |
+/-0.15 mm |
0.3 mm |
|
D13X330 mm |
d 1.75 mm |
+/-0.15mm |
5.85 mm |
+/-0.15 mm |
0.34 mm |
|
D14X330 mm |
d 1.75 mm |
+/-0.15mm |
6.85 mm |
+/-0.15 mm |
0.37 mm |
|
D15X330 mm |
d 2.0 mm |
+/-0.20mm |
6.85 mm |
+/-0.15 mm |
0.4 mm |
|
D16X330 mm |
d 2.0 mm |
+/-0.20mm |
7.85 mm |
+/-0.15 mm |
0.4 mm |
|
D17X330 mm |
d 2.0 mm |
+/-0.20mm |
7.85 mm |
+/-0.15 mm |
0.47 mm |
|
D18X330 mm |
d 2.0 mm |
+/-0.20mm |
8.85 mm |
+/-0.15 mm |
0.5 mm |
|
D19X330 mm |
d 2.0 mm |
+/-0.20mm |
8.85 mm |
+/-0.15 mm |
0.5 mm |
|
D20X330 mm |
d 2.5 mm |
+/-0.25mm |
9.8 mm |
+/-0.20 mm |
0.5 mm |
|
D21X330 mm |
d 2.5 mm |
+/-0.25mm |
9.8 mm |
+/-0.20 mm |
0.5 mm |
|
D22X330 mm |
d 2.5 mm |
+/-0.25mm |
10.8 mm |
+/-0.20 mm |
0.5 mm |
|
D23X330 mm |
d 2.5 mm |
+/-0.25mm |
10.8 mm |
+/-0.20 mm |
0.5 mm |
|
D24X330 mm |
d 3.0 mm |
+/-0.25mm |
11.75 mm |
+/-0.20 mm |
0.5 mm |
|
D25X330 mm |
d 3.0 mm |
+/-0.25mm |
11.75 mm |
+/-0.20 mm |
0.5 mm |
|
D26X330 mm |
d 3.0 mm |
+/-0.25mm |
12.75 mm |
+/-0.20 mm |
0.5 mm |
CEMENTED CARBIDE ROD WITH 2 HELIX HOLES – 30°(Unpolished surface)
|
Diameter *Length |
Inner hole |
Tolerance |
TK |
Tolerance |
Pitch |
|
D3X330 mm |
d 0.4 mm |
+/-0.1 mm |
1.6 mm |
+/-0.1 mm |
16.32° |
|
D4X330 mm |
d 0.6 mm |
+/-0.1 mm |
2.1 mm |
+/-0.1 mm |
21.77° |
|
D5X330 mm |
d 0.7 mm |
+/-0.1 mm |
2.4 mm |
+/-0.2 mm |
27.21° |
|
D6X330 mm |
d 0.7 mm |
+/-0.1 mm |
2.4 mm |
+/-0.2 mm |
32.65° |
|
D7X330 mm |
d 1.0 mm |
+/-0.15 mm |
3.5 mm |
+/-0.2 mm |
38.09° |
|
D8X330 mm |
d 1.0 mm |
+/-0.15 mm |
3.8 mm |
+/-0.2 mm |
43.53° |
|
D9X330 mm |
d 1.4 mm |
+/-0.15 mm |
4.5 mm |
+/-0.3 mm |
48.97° |
|
D10X330 mm |
d 1.4 mm |
+/-0.15 mm |
4.5 mm |
+/-0.3 mm |
54.41° |
|
D11X330 mm |
d 1.4 mm |
+/-0.15 mm |
4.9 mm |
+/-0.4 mm |
59.86° |
|
D12X330 mm |
d 1.4 mm |
+/-0.15 mm |
5.4 mm |
+/-0.4 mm |
65.30° |
|
D13X330 mm |
d 1.75 mm |
+/-0.20 mm |
6.1 mm |
+/-0.4 mm |
70.74° |
|
D14X330 mm |
d 1.75 mm |
+/-0.20 mm |
6.7 mm |
+/-0.4 mm |
76.18° |
|
D15X330 mm |
d 1.75 mm |
+/-0.20 mm |
7.3 mm |
+/-0.4 mm |
81.62° |
|
D16X330 mm |
d 1.75 mm |
+/-0.20 mm |
8.0 mm |
+/-0.4 mm |
87.06° |
|
D17X330 mm |
d 2.00 mm |
+/-0.25 mm |
8.0 mm |
+/-0.4 mm |
92.50° |
|
D18X330 mm |
d 2.00 mm |
+/-0.25 mm |
9.0 mm |
+/-0.4 mm |
97.95° |
|
D19X330 mm |
d 2.00 mm |
+/-0.25 mm |
9.0 mm |
+/-0.4 mm |
103.39° |
|
D20X330 mm |
d 2.00 mm |
+/-0.25 mm |
10.0 mm |
+/-0.4 mm |
108.83° |
|
D21X330 mm |
d 2.00 mm |
+/-0.25 mm |
10.0 mm |
+/-0.5 mm |
114.27° |
|
D22X330 mm |
d 2.00 mm |
+/-0.30 mm |
10.0 mm |
+/-0.5 mm |
119.71° |
|
D23X330 mm |
d 2.00 mm |
+/-0.30 mm |
10.0 mm |
+/-0.5 mm |
125.15° |
|
D24X330 mm |
d 2.00 mm |
+/-0.30 mm |
12.0 mm |
+/-0.5 mm |
130.59° |
|
D25X330 mm |
d 2.00 mm |
+/-0.30 mm |
12.0 mm |
+/-0.5 mm |
136.05° |
|
D26X330 mm |
d 2.00 mm |
+/-0.30 mm |
12.0 mm |
+/-0.5 mm |
141.48° |
CEMENTED CARBIDE ROD WITH 2 HELIX HOLES – 40°(Unpolished surface)
|
Diameter *Length |
Inner hole |
Tolerance |
TK |
Tolerance |
Pitch (+/-1°) |
|
D6X330 mm |
d 0.7 mm |
+/-0.1 mm |
1.9 mm |
+/-0.1 mm |
22.46° |
|
D8x330 mm |
d 0.65 mm |
+/-0.1 mm |
2.4 mm |
+/-0.2 mm |
29.95° |
|
D10 X330 mm |
d 0.80 mm |
+/-0.1 mm |
3.1 mm |
+/-0.2 mm |
37.44° |
|
D12 X330 mm |
d 0.9 mm |
+/-0.1 mm |
3.8 mm |
+/-0.2 mm |
44.93° |
|
D14 X330 mm |
d 1.0 mm |
+/-0.15 mm |
4.3 mm |
+/-0.3 mm |
52.42° |
|
D16 X330mm |
d 1.2 mm |
+/-0.15 mm |
5.1 mm |
+/-0.4 mm |
59.90° |
|
D18 X330mm |
d 1.4 mm |
+/-0.15 mm |
5.9 mm |
+/-0.4 mm |
67.39° |
|
D20 X330mm |
d 1.5 mm |
+/-0.15 mm |
6.6 mm |
+/-0.4 mm |
74.88° |
|
D22 X330mm |
d 1.7 mm |
+/-0.20 mm |
7.2 mm |
+/-0.4 mm |
82.35° |
|
D25 X330mm |
d 1.75 mm |
+/-0.20 mm |
7.6 mm |
+/-0.4 mm |
93.58° |
CEMENTED CARBIDE ROD WITH 3 HELIX HOLES – 30°(Unpolished surface)
|
Diameter X Length |
Inner hole |
Tolerance |
TK |
Tolerance |
Pitch (+/-1°) |
|
D6X330 mm |
0.5 |
+/-0.15 |
2.75 |
+/-0.2mm |
32.65° |
|
D8x330 mm |
0.7 |
+/-0.15 |
3.85 |
+/-0.2mm |
43.53° |
|
D10 X330 mm |
0.85 |
+/-0.20 |
4.95 |
+/-0.3mm |
54.41° |
|
D12 X330 mm |
1.1 |
+/-0.20 |
6.05 |
+/-0.4mm |
65.30° |
|
D14 X330 mm |
1.4 |
+/-0.20 |
7.05 |
+/-0.4mm |
76.18° |
|
D16 X330mm |
1.6 |
+/-0.20 |
8.05 |
+/-0.4mm |
87.06° |
|
D18 X330mm |
1.7 |
+/-0.25 |
9.25 |
+/-0.5mm |
98.95° |
|
D20 X330mm |
1.9 |
+/-0.25 |
9.85 |
+/-0.5mm |
108.83° |
Any special requirementson materials and tolerance are acceptable!
All sizes are available, with sintered, grinding, polishing, large ready stock for immediately delivery!
Previous Page
Next Page
Previous Page
Next Page
Product Consultation
Mobile phone
Address
Room 1608, Platinum Center, No. 1660 Xintang Road, Guihua Street, Hetang District, Zhuzhou City, Hunan Province
