Product Details
Cemented Carbide Saw Tips is a material used for a number of industrial applications and it is characterized by its high strength, toughness and hardness.
Properties of grades:
|
Application |
Binder |
Grain Size |
Density |
Hardness |
T.R.S |
USA Code |
ISO Code |
|
(%) |
≥N/mm2 |
||||||
|
Saw tips for woodworking |
3 |
Ultra fine |
15.15 |
94.3 |
2600 |
C4 |
K01 |
|
3.3 |
Ultra fine |
15.1 |
94.6 |
2400 |
C4 |
K01 |
|
|
3.3 |
Submicro |
15.2 |
94.6 |
2400 |
C4 |
K05 |
|
|
4.8 |
Submicro |
14.95 |
94.1 |
2400 |
C4 |
K05 |
|
|
5 |
Submicro |
14.95 |
93.6 |
2800 |
C3 |
K10 |
|
|
5.5 |
Submicro |
14.85 |
93.6 |
2400 |
C3 |
K10 |
|
|
6 |
Fine |
14.9 |
92.7 |
3000 |
C3 |
K10 |
|
|
6 |
Fine |
14.9 |
92.7 |
3000 |
C3 |
K10 |
|
|
8 |
Fine |
14.7 |
91.9 |
3200 |
C3 |
K10 |
|
|
6 |
Medium fine |
14.9 |
91.3 |
2100 |
C3 |
K10 |
|
|
7 |
Medium fine |
14.8 |
91 |
2300 |
C2 |
K20 |
|
|
8 |
Medium fine |
14.7 |
90.2 |
2500 |
C2 |
K20 |
|
|
9 |
Medium fine |
14.6 |
89.8 |
2600 |
C1 |
K30 |
|
|
12 |
Medium fine |
14.3 |
88.8 |
2800 |
C1 |
K40 |
|
|
Saw tips for metalworking |
10 |
Submicro |
14.5 |
91.8 |
3800 |
C2 |
K30 |
|
12 |
Ultra fine |
14.15 |
92.2 |
3900 |
C1 |
K40 |

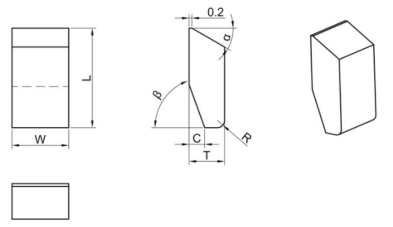

Carbide Saw Tips-Style A (Woodworking saw tips)
|
L |
T |
WMax |
α˚ |
β˚ |
R |
|
mm |
mm |
mm |
|||
|
4 |
2 |
3.5 |
20 |
70 |
0.5 |
|
4.5 |
1.6 |
3.5 |
20 |
60 |
0.5 |
|
5 |
1.5 |
3.5 |
15 |
70 |
0.4 |
|
5.5 |
1.5 |
3.5 |
15 |
70 |
0.4 |
|
5.5 |
1.7 |
3.5 |
15 |
70 |
0.4 |
|
5.5 |
2 |
4 |
20 |
70 |
0.5 |
|
5.5 |
2.5 |
4 |
15 |
60 |
0.5 |
|
6 |
1.8 |
4 |
15 |
70 |
0.5 |
|
6 |
2 |
4 |
20 |
70 |
0.5 |
|
6.5 |
1.8 |
4 |
20 |
70 |
0.5 |
|
6.5 |
2 |
4 |
20 |
70 |
0.5 |
|
6.5 |
2.3 |
4 |
25 |
70 |
0.5 |
|
7 |
2 |
4 |
20 |
70 |
0.5 |
|
7 |
2.3 |
4 |
25 |
70 |
0.5 |
|
7.5 |
2.3 |
4.5 |
30 |
70 |
0.5 |
|
7.5 |
2.5 |
4.5 |
30 |
70 |
0.5 |
|
8 |
2.3 |
4.5 |
25 |
70 |
0.5 |
|
8 |
2.5 |
4.5 |
30 |
70 |
0.5 |
|
8 |
2.7 |
4.5 |
20 |
70 |
0.5 |
|
8.5 |
2.5 |
4.5 |
30 |
70 |
0.5 |
|
8.5 |
2.8 |
5 |
30 |
70 |
0.5 |
|
9 |
2.5 |
6 |
30 |
70 |
0.5 |
|
9 |
2.8 |
6 |
30 |
70 |
0.5 |
|
9 |
3 |
6 |
30 |
60 |
0.5 |
|
9.5 |
2.5 |
6 |
30 |
60 |
0.5 |
|
9.5 |
3 |
6 |
30 |
70 |
0.5 |
|
100 |
2.4 |
6 |
30 |
70 |
0.5 |
|
10 |
2.8 |
6 |
30 |
70 |
0.5 |
|
10.5 |
2.5 |
7 |
30 |
70 |
0.5 |
|
10.5 |
2.8 |
10 |
30 |
70 |
0.5 |
|
10.5 |
3 |
10 |
30 |
70 |
0.5 |
|
10.5 |
3.5 |
10 |
30 |
70 |
0.5 |
|
10.7 |
3.5 |
10 |
30 |
70 |
0.5 |
|
11.5 |
4 |
10 |
30 |
70 |
0.5 |
|
12 |
3.5 |
10 |
30 |
70 |
0.5 |
|
12.5 |
3.5 |
10 |
30 |
70 |
0.5 |
|
13 |
4 |
10 |
30 |
70 |
0.5 |
|
14 |
3.5 |
10 |
30 |
70 |
0.5 |

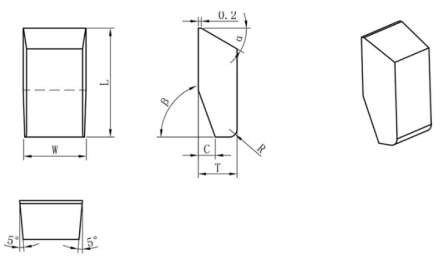

Carbide Saw Tips-Style B ( bevel European style)
|
L |
T |
WMax |
α˚ |
β˚ |
R |
|
mm |
mm |
mm |
|||
|
4 |
2 |
3.5 |
20 |
70 |
0.5 |
|
4.5 |
1.6 |
3.5 |
20 |
60 |
0.5 |
|
5 |
1.5 |
3.5 |
15 |
70 |
0.4 |
|
5.5 |
1.5 |
3.5 |
15 |
70 |
0.4 |
|
5.5 |
1.7 |
3.5 |
15 |
70 |
0.4 |
|
5.5 |
2 |
4 |
20 |
70 |
0.5 |
|
5.5 |
2.5 |
4 |
15 |
60 |
0.5 |
|
6 |
1.8 |
4 |
15 |
70 |
0.5 |
|
6 |
2 |
4 |
20 |
70 |
0.5 |
|
6.5 |
1.8 |
4 |
20 |
70 |
0.5 |
|
6.5 |
2 |
4 |
20 |
70 |
0.5 |
|
6.5 |
2.3 |
4 |
25 |
70 |
0.5 |
|
7 |
2 |
4 |
20 |
70 |
0.5 |
|
7 |
2.3 |
4 |
25 |
70 |
0.5 |
|
7.5 |
2.3 |
4.5 |
30 |
70 |
0.5 |
|
7.5 |
2.5 |
4.5 |
30 |
70 |
0.5 |
|
8 |
2.3 |
4.5 |
25 |
70 |
0.5 |
|
8 |
2.5 |
4.5 |
30 |
70 |
0.5 |
|
8 |
2.7 |
4.5 |
20 |
70 |
0.5 |
|
8.5 |
2.5 |
4.5 |
30 |
70 |
0.5 |
|
8.5 |
2.8 |
5 |
30 |
70 |
0.5 |
|
9 |
2.5 |
6 |
30 |
70 |
0.5 |
|
9 |
2.8 |
6 |
30 |
70 |
0.5 |
|
9 |
3 |
6 |
30 |
60 |
0.5 |
|
9.5 |
2.5 |
6 |
30 |
60 |
0.5 |
|
9.5 |
3 |
6 |
30 |
70 |
0.5 |
|
100 |
2.4 |
6 |
30 |
70 |
0.5 |
|
10 |
2.8 |
6 |
30 |
70 |
0.5 |
|
10.5 |
2.5 |
7 |
30 |
70 |
0.5 |
|
10.5 |
2.8 |
10 |
30 |
70 |
0.5 |
|
10.5 |
3 |
10 |
30 |
70 |
0.5 |
|
10.5 |
3.5 |
10 |
30 |
70 |
0.5 |
|
10.7 |
3.5 |
10 |
30 |
70 |
0.5 |
|
11.5 |
4 |
10 |
30 |
70 |
0.5 |
|
12 |
3.5 |
10 |
30 |
70 |
0.5 |
|
12.5 |
3.5 |
10 |
30 |
70 |
0.5 |
|
13 |
4 |
10 |
30 |
70 |
0.5 |
|
14 |
3.5 |
10 |
30 |
70 |
0.5 |

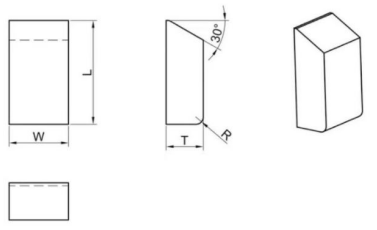

Carbide Saw Tips-North America style, Canadian Style, W Style(inch), CW Style(inch).
|
TYPE |
L (Inch) |
T(Inch) |
W Max(Inch) |
α˚ |
|
WA |
0.25 |
0.062 |
0.215 |
30 |
|
WB |
0.281 |
0.078 |
0.312 |
30 |
|
WC |
0.281 |
0.093 |
0.25 |
30 |
|
WD |
0.312 |
0.093 |
0.312 |
30 |
|
WE |
0.375 |
0.093 |
0.375 |
30 |
|
WF |
0.5 |
0.125 |
0.375 |
30 |
|
WG |
0.375 |
0.125 |
0.75 |
30 |
|
WH |
0.344 |
0.125 |
0.3 |
30 |
|
WQ |
0.375 |
0.156 |
0.375 |
30 |
|
TYPE |
L(Inch) |
T(Inch) |
W Max(Inch) |
α˚ |
β˚ |
|
CWB |
0.281 |
0.078 |
0.12 |
30 |
60 |
|
CWD |
0.312 |
0.093 |
0.312 |
30 |
60 |
|
CWE |
0.375 |
0.093 |
0.375 |
30 |
60 |
|
CWF |
0.5 |
0.125 |
0.65 |
30 |
60 |
|
CWG |
0.375 |
0.125 |
0.5 |
30 |
60 |
|
CWH |
0.344 |
0.125 |
0.3 |
30 |
60 |
|
CWQ |
0.375 |
0.156 |
0.3 |
30 |
60 |
|
CWR |
0.541 |
0.012 |
0.5 |
30 |
70 |

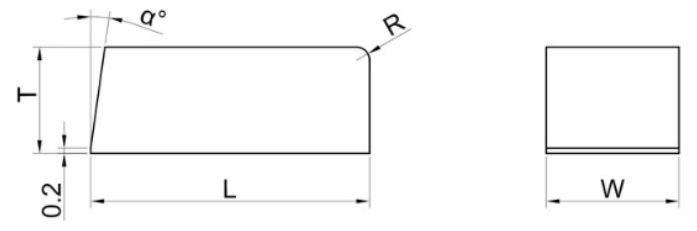

Carbide Saw Tips-L & R Style
|
L(Inch) |
T(Inch) |
W Max(Inch) |
α˚ |
|
0.312 |
0.093 |
0.135 |
30 |
|
0.312 |
0.093 |
0.15 |
30 |
|
0.312 |
0.093 |
0.165 |
30 |
|
0.312 |
0.093 |
0.17 |
30 |
|
0.312 |
0.093 |
0.18 |
30 |
|
0.312 |
0.093 |
0.185 |
30 |
|
0.312 |
0.093 |
0.2 |
30 |
|
0.312 |
0.093 |
0.215 |
30 |
|
0.312 |
0.093 |
0.22 |
30 |
|
0.312 |
0.093 |
0.23 |
30 |
|
0.312 |
0.093 |
0.25 |
30 |
|
0.312 |
0.093 |
0.265 |
30 |
|
0.312 |
0.093 |
0.27 |
30 |
|
0.375 |
0.093 |
0.165 |
30 |
|
0.375 |
0.093 |
0.17 |
30 |
|
0.375 |
0.093 |
0.18 |
30 |
|
0.375 |
0.093 |
0.185 |
30 |
|
0.375 |
0.093 |
0.2 |
30 |
|
0.375 |
0.093 |
0.215 |
30 |
|
0.375 |
0.093 |
0.22 |
30 |
|
0.375 |
0.093 |
0.23 |
30 |
|
0.375 |
0.093 |
0.25 |
30 |
|
0.375 |
0.095 |
0.265 |
30 |
|
0.375 |
0.093 |
0.27 |
30 |
|
0.375 |
0.093 |
0.29 |
30 |
|
0.5 |
0.125 |
0.23 |
30 |
|
0.5 |
0.125 |
0.25 |
30 |
|
0.5 |
0.125 |
0.28 |
30 |
|
0.5 |
0.125 |
0.29 |
30 |
|
0.5 |
0.125 |
0.3 |
30 |
|
0.375 |
0.125 |
0.15 |
30 |
|
0.375 |
0.125 |
0.16 |
30 |
|
0.375 |
0.125 |
0.18 |
30 |
|
0.375 |
0.125 |
0.2 |
30 |
|
0.375 |
0.125 |
0.215 |
30 |
|
0.375 |
0.125 |
0.22 |
30 |
|
0.375 |
0.125 |
0.23 |
30 |
|
0.375 |
0.125 |
0.24 |
30 |
|
0.375 |
0.125 |
0.25 |
30 |
|
0.375 |
0.125 |
0.265 |
30 |
|
0.38 |
0.125 |
0.27 |
30 |
|
0.375 |
0.125 |
0.28 |
30 |
|
0.375 |
0.125 |
0.29 |
30 |
|
0.375 |
0.125 |
0.3 |
30 |
|
0.375 |
0.125 |
0.36 |
30 |

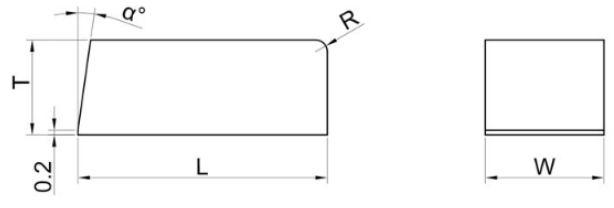

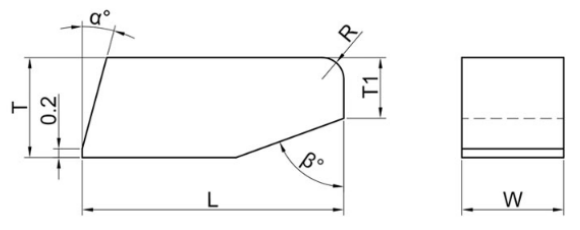

Carbide Saw Tips for Metal
|
L(mm) |
T(mm) |
W Max(mm) |
α˚ |
β˚ |
R |
|
5 |
2.5 |
3.5 |
15° |
50° |
0.5 |
|
6 |
2.3 |
4 |
15° |
70° |
0.5 |
|
6.5 |
2 |
4 |
20° |
60° |
0.5 |
|
8 |
3 |
4.5 |
6° |
45° |
0.6 |
|
L(mm) |
T(mm) |
W Max(mm) |
α˚ |
β˚ |
R |
|
10.5 |
4 |
10 |
8° |
/ |
0.5 |
|
12 |
4 |
10 |
8° |
/ |
0.4 |
|
L(mm) |
T(mm) |
W Max(mm) |
α˚ |
R |
|
4.5 |
2.6 |
3.5 |
10° |
0.51 |
