Product Details

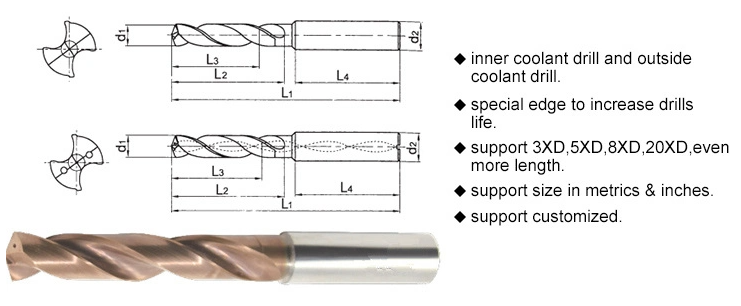

Carbide drill bits are drilling tools made of tungsten carbide material. They offer the best combination of penetration and precision. It can be used to drill holes in various metallic materials such as steel, aluminum, and bronze, as well as other non-metallic materials such as wood, concrete, masonry, tile, etc.
We manufacture and stock carbide drill bits for different applications. Our standard drills are 3D and 5D carbide drills for general use with a bronze coating. The base material, geometry and coating of drill bits can determine their drilling performance in certain materials. We can manufacture according to yourrequirements.
|
3XD Solid Carbide Drill(With coolant and Without coolant) |
|||
|
cutting diameter (mm) |
cutting length (mm) |
shank diameter (mm) |
total length (mm) |
|
3.00-3.70 |
20 |
6 |
62 |
|
3.80-4.70 |
24 |
6 |
66 |
|
4.80-6.00 |
28 |
6 |
66 |
|
6.10-7.00 |
34 |
8 |
79 |
|
7.10-8.00 |
41 |
8 |
79 |
|
8.10-10.00 |
47 |
10 |
89 |
|
10.1-12.00 |
55 |
12 |
102 |
|
12.1-14.0 |
60 |
14 |
107 |
|
14.1-16.0 |
65 |
16 |
115 |
|
16.1-18.0 |
73 |
18 |
123 |
|
18.1-20.0 |
79 |
20 |
131 |
|
20.1-22.0 |
96 |
25 |
146 |
|
22.1-25.0 |
103 |
25 |
153 |
|
5XD Solid Carbide Drill(With coolant and Without coolant) |
|||
|
cutting diameter (mm) |
cutting length (mm) |
shank diameter (mm) |
total length (mm) |
|
3.00-3.70 |
28 |
6 |
66 |
|
3.80-4.70 |
36 |
6 |
74 |
|
4.80-6.00 |
44 |
6 |
82 |
|
6.1-8.00 |
53 |
8 |
91 |
|
8.10-10.00 |
61 |
10 |
103 |
|
10.1-12.00 |
71 |
12 |
118 |
|
12.1-14.0 |
77 |
14 |
124 |
|
14.1-16.0 |
83 |
16 |
133 |
|
16.1-18.0 |
93 |
18 |
143 |
|
18.1-20.0 |
101 |
20 |
153 |
|
20.1-22.0 |
108 |
25 |
166 |
|
22.1-24.0 |
115 |
25 |
173 |
|
24.0-25.0 |
122 |
25 |
180 |
|
5XD Solid Carbide Drill With CoolantSpecial For Stainless Steel |
|||
|
cutting diameter (mm) |
cutting length (mm) |
shank diameter (mm) |
total length (mm) |
|
3.00-3.70 |
28 |
6 |
66 |
|
3.80-4.70 |
36 |
6 |
74 |
|
4.80-6.00 |
44 |
6 |
82 |
|
6.10-8.00 |
53 |
8 |
91 |
|
8.10-10.00 |
61 |
10 |
103 |
|
10.1-12.0 |
71 |
12 |
118 |
|
12.1-14.0 |
77 |
14 |
124 |
|
14.1-16.0 |
83 |
16 |
133 |
|
16.1-18.0 |
93 |
18 |
143 |
|
18.1-20.0 |
101 |
20 |
153 |
